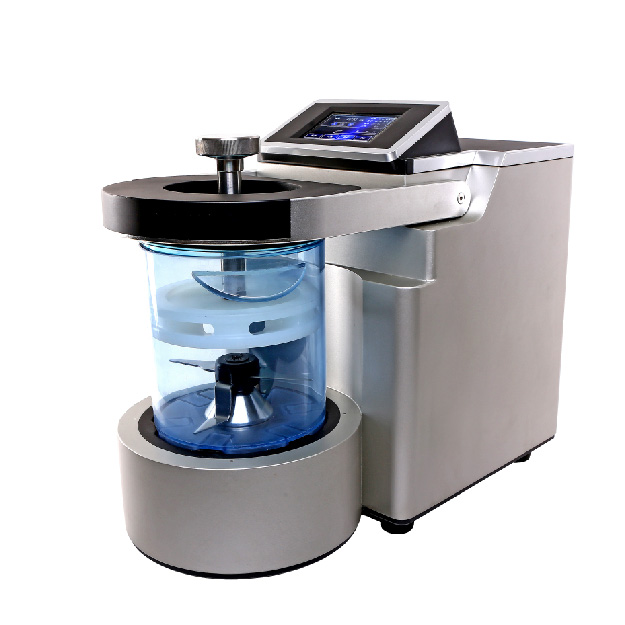

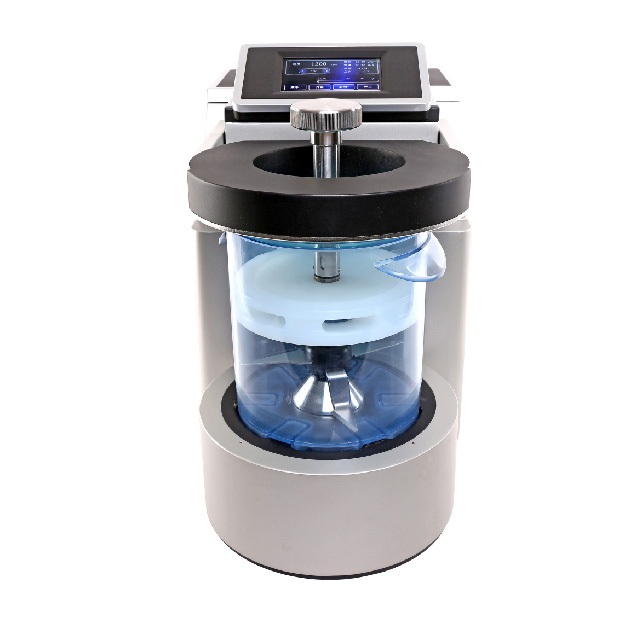

Knife Mill HM300
Feed size:< 130mm
Final fineness:< 300μm
Speed:500~4000rpm
Share
Description
Product Video
Order Information
Product Catalogue
Operating Manual
The Knife Mill HM300 is especially suitable for grinding and homogenizing large amount of samples to the analysis level in a short time.
| Application |
○ Sample type:
Soft, elastic, fibrous, water-bearing, oily, fatty, dry sample
Soft, elastic, fibrous, water-bearing, oily, fatty, dry sample
○ Application fields
Agriculture: grain, feed, etc
Biology: mouse tissue, plant leaves, seeds, seedling and germ
Medicine: Chinese medicine, pills, etc
Food: dried melon, vegetables, frozen food, cocoa,candy, preserved fruit, meat
Agriculture: grain, feed, etc
Biology: mouse tissue, plant leaves, seeds, seedling and germ
Medicine: Chinese medicine, pills, etc
Food: dried melon, vegetables, frozen food, cocoa,candy, preserved fruit, meat
(*Especially suitable for large amount sample, such as: chicken bones, fresh fish, seafood, hazels,etc.)
| Working Principle |
The HM300 has four-blade knives at the center of the bottom of a grinding cup. A certain height gap is kept between the blades. Driven by a motor of 1.5KW, the knives start rotating. Reliable crushing and homogeneous phase effects are generated via the cutting of the sharp steel knife edges. The blunt side can be selected for coarse grinding of bulk samples or the tough side for fine grinding of samples.
| Features and advantages |
○ 10 SOPs can be stored.
○ It allows to dry grinding and wet grinding.
○ 5 inch LED touch screen display, easy to operate.
○ With interval mode, regular mode and reverse mode.
○ Powerful brushless motor, the speed can be adjusted at the range of 500- 4000 rpm.
○ Designed with double-deck 4 pieces of straight blades to ensure higher grinding efficiency.
○ The mill designed with electromagnetic lock. It’s safe and reliable. The cover can not be opened during grinding process.
○ It allows to dry grinding and wet grinding.
○ 5 inch LED touch screen display, easy to operate.
○ With interval mode, regular mode and reverse mode.
○ Powerful brushless motor, the speed can be adjusted at the range of 500- 4000 rpm.
○ Designed with double-deck 4 pieces of straight blades to ensure higher grinding efficiency.
○ The mill designed with electromagnetic lock. It’s safe and reliable. The cover can not be opened during grinding process.
| Technical Data |
| Feed size | < 130mm |
| Final fineness | < 300μm |
| Speed | 500~4000rpm |
| Time setting | 00：00-99：59（min/s） |
| Batch quantity | ＜4L |
| Interval mode | Yes |
| Knives | stainless steel,titanium coating |
| Number of blades | 4 |
| Rated power | 1.5KW |
| Power supply | 220V，50/60Hz |
| Instrument size | 306*581*485mm |
| Package size | 705*475*700mm |
| Net weight | 40kg |
*Information on this site is provided for information purposes only and the contents hereof are subject to change without notice.
| Order Information-Knife Mill HM300 | |
| Item No. | Description |
| 24.889.0001 | Knife Mill HM300,(220V, 50/60Hz) incl. 5L grinding container of autoclavable plastic, standard lid and knife of stainless steel |
| Accessories of HM300 | |
| Grinding containers, 5L | |
| 01.889.0001 | autoclavable plastic,transparent and scratch-resistant, incl. knife holder |
| 01.889.0002 | stainless steel,incl. knife holder |
| Lids for grinding containers of autoclavabel plastic or PP | |
| 01.889.0010 | standard lid,scratch-resistant PP |
| 01.889.0011 | standard lid,scratch-resistant PP, suitable for dry ice |
| 01.889.0005 | Gravity lid,PP |
| 01.889.0006 | Gravity lid,PP with overflow channels |
| Knives | |
| 01.889.0003 | knife of stainless steel |
| 01.889.0004 | knife of titanium coating for grinding without heavy -metal contamination |
| 01.889.0009 | knife of stainless steel with serrated blades for grinding meat |
| Additional item | |
| 02.889.0001 | scraper |
