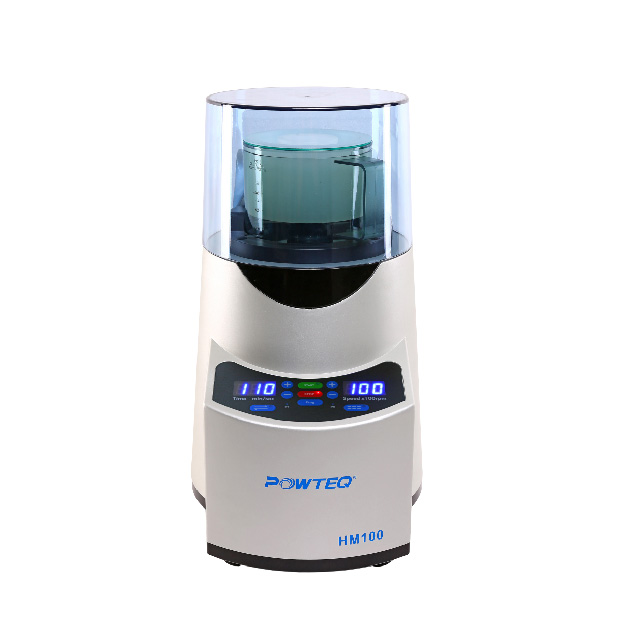

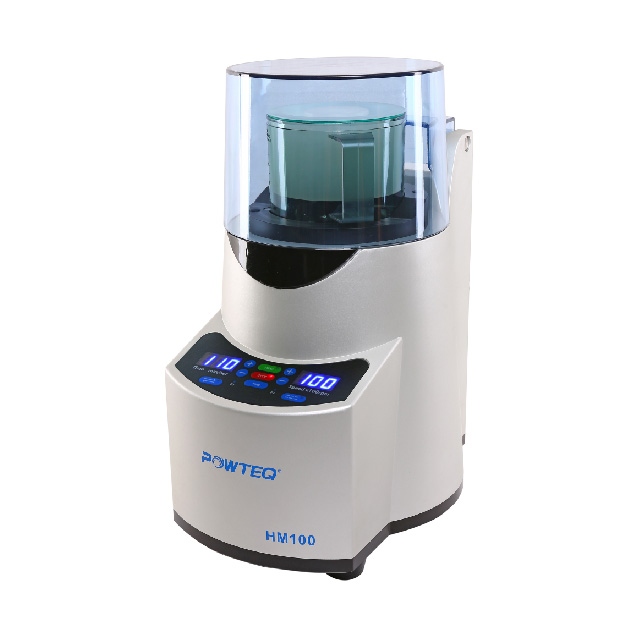

Knife Mill HM100
Feed size：<50mm
Final fineness：＜320μm
The Knife Mill HM100 is used to process the soft, medium-hard, brittle and fibrous sample. It is special for high water, oil or fat content sample.
| Application |
Biology: mouse tissue, plant leaves, seeds, seedling and germ
Medicine: Chinese medicine, pills, etc
Food: dried melon, vegetables, frozen food, candy, preserved fruit, meat
| Working Principle |
The HM100 has two-blade knives at the center of the bottom of a grinding cup. A certain height gap is kept between the blades. Driven by a motor of 1,100W, the knives start rotating. Reliable crushing and homogeneous phase effects are generated via the cutting of the sharp steel knife edges. The blunt side can be selected for coarse grinding of bulk samples or the tough side for fine grinding of samples. The motor speed is electronically controlled and can be preset. The constant speed guarantees efficient and high-quality grinding homogenization. You just need 10 to 30 seconds to process samples that are usually hard to crush and get homogenized samples for analysis.
|
Features and advantages |
○ Autoclavable container for choice
○ Grinding container in various material
○ Simple operation and quick start
○ Strong motor power 1.1KW, speed adjustable
○ Coarse grinding and fine grinding can be realized in one step
○ Three modes optional: interval mode, reverse mode and press-and-play mode
○ Overload protection and safety lock design
| Technical Data | |
| Feed size | < 40mm |
| Final fineness | < 300μm |
| Speed | 2000-10000rpm |
| Time setting | 0：01-9：59（min/s） |
| Batch quantity | 150-700ml |
| Interval mode | Yes |
| Knives | stainless steel,titanium alloy |
| Number of blades | 2 |
| Rated power | 1.1KW |
| Power supply | 220V，50/60Hz |
| Instrument size | 260*343*454mm |
| Package size | 480*550*720mm |
| Net weight | 16kg |
| Order Information-Knife Mill HM100 | |
| Item No. | Description |
| 24.877.0001 | Knife Mill HM100,(220V, 50/60Hz)incl. 1L grinding container of autoclavable plastic, standard lid and knife of stainless steel |
| Accessories of HM100 | |
| Grinding containers, 1L | |
| 01.877.1005 | autoclavable plastic(transparent and scratch-resistant) |
| 02.877.0002 | stainless steel |
| 02.877.0011 | PP |
| 02.877.0014 | PP,10pcs |
| 02.877.0013 | Glass |
| Lids for grinding containers of autoclavabel plastic or PP | |
| 02.877.0003 | Standard lid,PP(for containers with above four kinds of materials) |
| 02.877.0004 | Gravity lid,PP |
| 02.877.0005 | Gravity lid,PP with overflow channels |
| 02.877.0009 | Reduction lid ,PC, for chamber reduction to 300ml |
| 02.877.0010 | Reduction lid ,PC, for chamber reduction to 500ml |
| Lids for grinding containers of stainless steel | |
| 02.877.0006 | gravity lid, PP |
| 02.877.0007 | gravity lid, PP with overflow channels |
| Knives | |
| 01.877.0001 | knife of stainless steel |
| 01.877.0002 | knife of titanium alloy for grinding without heavy -metal contamination |
| 01.877.0003 | knife of stainless steel with serrated blades for grinding meat |
| Additional item | |
| 02.877.0008 | scraper |
