Micro Ball Mill GT300
Feed size:＜10mm
Final fineness:＜5μm
Speed:180-1800rpm
Share
Description
Product Video
Order Information
Product Catalogue
Operating Manual
The Micro ball mill GT300 is designed for modern laboratory applications. It can process small amount and large batch sample, for example: plants, animal tissue and small quantity samples in dry ,wet or cryogenic condition. It can mix and homogenize powders and suspensions in only a few seconds. It is also perfectly suitable for the disruption of biological cells as well as for DNA/RNA and protein extraction.
| Application |
○ Sample type:hard, soft, elastic and fibrous samples
○ Typical sample:plant root, stem, leaf, grain, seed; human and animal tissue, viscera, bone, hair; mineral, soil, glass, ceramic, rubber, plastic, solid waste, electronic waste, paper, textile, chemical, medicine, food.
Grinding,mixing and cell disruption
The Micro ball mill GT300 is designed for modern laboratory applications. It can process 2 pcs and large batch samples simultaneously in 30 seconds, the sample volume from 0.2ml to 50ml. It meets the requirements of high throughput grinding extremely.
| Working Principle |
The Micro Ball Mill can grind 2*96 samples quickly and efficiently only with 1-3min. The grinding jars of the GT300 perform horizontal oscillation in high frequency. The inertia of the grinding balls causes them to impact with high energy on the sample material and grind it. The movement of the grinding jars and balls result in the intensive grinding and mixing of the samples.
| Features and advantages |
○ Suitable for dry,wet and freezing grinding.
○ Extremely short processing time.
○ Designed for high sample throughput, up to 192 sample preparations.
○ It can mix and homogenize samples efficiently.
○ Wide range of grinding jars and accessories for extensive applications.
○ Pre-setting of all working parameters digitally, the result is repeatable.
○ The transparent window on the upper lid allows the user to check the grinding situation at any time.
○ The upper lid has a safety lock device, when the upper lid is opened in the grinding process, the motor will stop running to ensure the user personal safety.
○ Program setting can control the operation time, interim grinding and program storage etc.
○ Extremely short processing time.
○ Designed for high sample throughput, up to 192 sample preparations.
○ It can mix and homogenize samples efficiently.
○ Wide range of grinding jars and accessories for extensive applications.
○ Pre-setting of all working parameters digitally, the result is repeatable.
○ The transparent window on the upper lid allows the user to check the grinding situation at any time.
○ The upper lid has a safety lock device, when the upper lid is opened in the grinding process, the motor will stop running to ensure the user personal safety.
○ Program setting can control the operation time, interim grinding and program storage etc.
○ 20 SOPs can be stored
| Easy operation and high safety performance |
Due to an integrated motor brake the machine can only be started when the lid is closed .The unique "Easy Clamp" system allows the simple and safe clamping of all grinding jars up to 50mI.The grinding chamber ,easy clamp system as well as the swinging arm is made from high precision stainless steel to meet strict food and pharmaceutical requirements. The application of new brushless motor makes the maintenance of GT300 very convenient.
| Wide kinds of accessories |
Wide kinds of accessories
○Adapters for reaction vials;
○Avoid cross contamination between samples; achieve the high-throughput;
○The adapters can be placed into the liquid nitrogen directly.
○Avoid cross contamination between samples; achieve the high-throughput;
○The adapters can be placed into the liquid nitrogen directly.
○Many kinds of materials grinding jar, the maximum volume up to 50ml;
○Suitable for processing the soil, mineral, plant,dental materials and so on.
○Suitable for processing the soil, mineral, plant,dental materials and so on.
○Suitable for detection of pesticide residue samples;
○50ml reaction vials with adapter can process 8pcs sample simultaneously;
○Meet the QuECHERS requirement.
○50ml reaction vials with adapter can process 8pcs sample simultaneously;
○Meet the QuECHERS requirement.
Specially designed cast stainless steel clamping device is comfortable, strong and durable.A mobile positioning catch is equipped inside the clamping device, which greatly improves the service life of grinding parts and the clamping device.
Control panel
○ Advanced touch screen design, easy to control the instrument program and set the grinding parameters.
○ Grinding time setting from 1s-99min/59s,digital and adjustable.
○ Setting of vibrational frequency is 180-1800rpm,digital and adjustable.
○ Grinding time setting from 1s-99min/59s,digital and adjustable.
○ Setting of vibrational frequency is 180-1800rpm,digital and adjustable.
Cryo kit for jar ( or adapter) cooling with liquid nitrogen
Insulation heat preservation box, the clamping device for jar, eyes protector. For heat sensitive materials such as plastics and rubber, it is recommended to pre-freeze the samples and grinding jars with liquid nitrogen. Those jars either made from teflon or stainless steel are suitable for cryogenic grinding applications.
Bead dispensers
Suitable for 96 hole deep well plate ,and with 3mm and 5mm sizes for choice.
Various of reaction vials for freezing grinding
Plastic,PC,PTFE and stainless steel reaction vials, with stainless steel, zirconium oxide and tungsten carbide balls, which can be used to treat small volume samples in cryogenic milling.

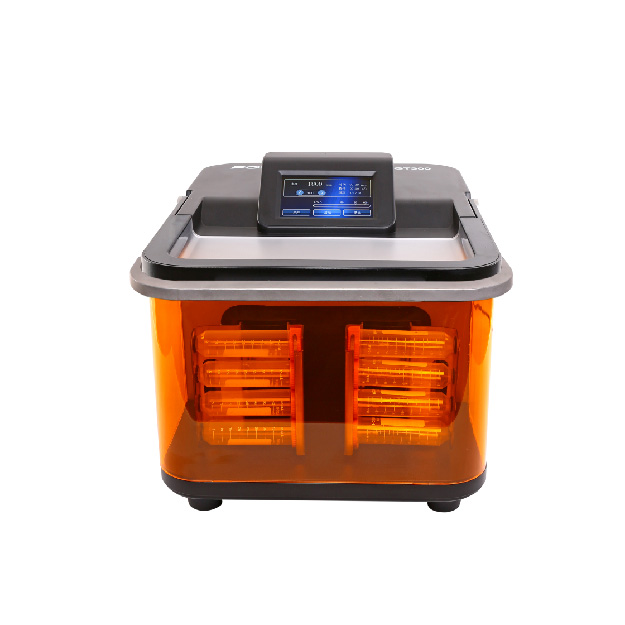

Adapter for reaction vials of biological cell disruption
○ With its high throughput，GT300 efficiently and safely disrupts multiple samples simultaneously such as spores, microorganisms, plant and animal tissue or soil,etc.
○ Put the samples along with extracting solution , metal and ceramic balls into the disposable reaction vials. After 2 minutes ,more than 95% of the cells can be disrupted efficiently.
○ It is most suitable for some sample preparation like PCR, PAGE and Probe , which cross contamination between samples are strictly forbidden.
○ 5,10,24 holes adapter to match with the 1.5 /2.0ml reaction vial, and 6 holes adapter with 5ml reaction vials, 96 holes adapter with1.2ml deep hole plates are available for choice.
○ Put the samples along with extracting solution , metal and ceramic balls into the disposable reaction vials. After 2 minutes ,more than 95% of the cells can be disrupted efficiently.
○ It is most suitable for some sample preparation like PCR, PAGE and Probe , which cross contamination between samples are strictly forbidden.
○ 5,10,24 holes adapter to match with the 1.5 /2.0ml reaction vial, and 6 holes adapter with 5ml reaction vials, 96 holes adapter with1.2ml deep hole plates are available for choice.

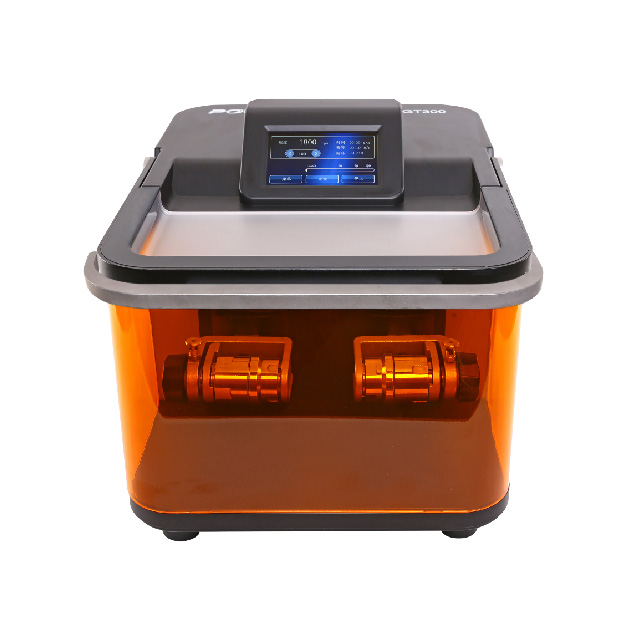

Fast clamping jars
○ Dry grinding
○ Mechanical alloy grinding
○ Wet grinding
○ Wet grinding
○ Freezing grinding
○ Ultra-fine grinding
○ Ultra-fine grinding
| Technical Data |
| Feed size | ＜10mm |
| Final fineness |
<5μm |
| Speed | 180-1800rpm |
| Time setting |
00:01~99:59(min/s) |
| Sample volume
|
0.2~20ml |
| Rated power |
150W |
| Power Supply |
220V,50Hz/60Hz |
| Instrument size (W*D*H) |
360*505*335mm |
| Package size(W*D*H) |
700*500*560mm |
| Weight | 34kg |
* Information on this site is provided for information purposes only and the contents hereof are subject to change without notice.
| Micro Ball Mill GT300-Order Information | |
| Item No. | Description |
| Please order grinding jars and balls separately | |
| 24.890.0001 | Micro Ball Mill GT300, 220V, 50/60Hz |
| 24.890.0003 | Micro Ball Mil GT300, metal plate cover, 220V,50/60Hz |
| Grinding jars (screw threads twisting design) | |
| Hardened Stainless steel | |
| 01.863.0002 | 5 ml |
| 01.863.0003 | 10 ml |
| 01.863.0004 | 25 ml |
| 01.863.0005 | 35 ml |
| 01.863.0006 | 50 ml |
| Tungsten carbide | |
| 01.863.0007 | 10 ml |
| 01.863.0008 | 25 ml |
| Agate | |
| 01.863.0010 | 10 ml |
| Zirconium oxide | |
| 01.863.0011 | 10 ml |
| 01.863.0012 | 25 ml |
| 01.863.0013 | 35 ml |
| PTFE | |
| 01.863.0014 | 25 ml |
| 01.863.0015 | 35 ml |
| Accessories for jars | |
| 02.863.0001 | Jar wrench, for all materials of grinding jars |
| 11.863.1040 | Gasket for 25ml grinding jar of stainless steel.MOQ:10 pcs |
| 11.863.1068 | Gasket for 35ml grinding jar of stainless steel.MOQ:10pcs |
| 11.863.1037 | Gasket for 50ml grinding jar of stainless steel. MOQ:10pcs |
| 11.863.1082 | Gasket for 25ml grinding jar of zirconia. MOQ:10pcs |
| 11.863.1097 | Gasket for 35ml grinding jar of zirconia. MOQ:10pcs |
| Accessories for cold grinding | |
| 02.863.0007 | Cryo kit for cooling the grinding jars with liquid nitrogen |
| Accessories for cell disruption | |
| 02.863.0008 | PTFE adapter for 5 plastic reaction vials 1.5ml/2.0ml |
| 02.863.0009 | PTFE adapter for 10 plastic reaction vials 1.5ml/2.0ml |
| 02.863.0010 | PTFE adapter for 6 plastic reaction vials 5.0ml |
| 02.863.0011 | PTFE adapter for 6 PC reaction vials 5.0ml |
| 02.863.0012 | PTFE adapter for 24 plastic reaction vials 1.5ml/2.0ml |
| 02.863.0034 | PTFE adapter for 32 plastic reaction vials 1.5ml/2.0ml |
| 02.863.0035 | PTFE adapter for 12 plastic reaction vials 1.5ml/2.0ml |
| 02.863.0036 | PTFE adapter for 48 plastic reaction vials 1.5ml/2.0ml |
| 02.863.0016 | PTFE adapter for 12 PC reaction vials 5.0ml |
| 02.863.0029 | PTFE adapter, for 12 plastic reaction vials 5.0ml |
| 02.863.0013 | Al adapter for 96 plastic reaction vials 0.2-1.2ml, 8 vials/plate *12 |
| 02.863.0014 | Al adapter for integrated 96 plastic reaction vials 0.2-1.2ml |
| 02.863.0015 | stainless steel adapter for 4 stainless steel reaction vials 5.0ml |
| 02.863.0017 | Stainless steel adapter, a pair, each for 4*50ml plastic reaction vials |
| 02.863.0018 | 96 microplate bead dispenser, Ø3mm |
| 02.863.0019 | 96 microplate bead dispenser , Ø5mm |
| 02.863.0024 | Reaction vials,2.0 ml,100pcs/kit,plastic |
| 02.863.0025 | Reaction vials,5.0 ml,100pcs/kit,plastic |
| 02.863.0021 | Reaction vials 5.0ml SS, for hard sample |
| 02.863.0022 | Reaction vials 5.0ml PC,for hard sample |
| 02.863.0023 | Reaction vials,50 ml（20 pcs）,plastic |
| Grinding balls | |
| Hardened stainless steel | |
| 02.863.0101 | 1mm ø ,(500g) |
| 02.863.0102 | 2mm ø , (500g) |
| 02.863.0103 | 3 mm ø, (500g) |
| 02.863.0104 | 5 mm ø , (500g) |
| 02.863.0105 | 7 mm ø , (500g) |
| 02.863.0106 | 10 mm ø, (500g) |
| 02.863.0107 | 12 mm ø, (500g) |
| 02.863.0108 | 15 mm ø, (500g) |
| 02.863.0109 | 20 mm ø ,(1pc) |
| 02.863.0110 | 25 mm ø ,(1pc) |
| 02.863.0111 | 30 mm ø , (1pc) |
| Tungsten carbide | |
| 02.863.0123 | 5 mm ø , (1pc) |
| 02.863.0162 | 7 mm ø , (1pc) |
| 02.863.0163 | 12 mm ø , (1pc) |
| 02.863.0124 | 10 mm ø, (1pc) |
| 02.863.0125 | 15 mm ø, (1pc) |
| 02.863.0126 | 20 mm ø, (1pc) |
| 02.863.0127 | 25 mm ø, (1pc) |
| 02.863.0128 | 30 mm ø, (1pc) |
| 02.863.0129 | 40 mm ø, (1pc) |
| Agate | |
| 02.863.0130 | 5 mm ø, (500g) |
| 02.863.0131 | 10 mm ø, (500g) |
| 02.863.0132 | 15mm ø , (1pc) |
| 02.863.0133 | 20mm ø, (1pc) |
| 02.863.0134 | 25mm ø, (1pc) |
| 02.863.0135 | 30mm ø, (1pc) |
| 02.863.0136 | 40mm ø, (1pc) |
| Zirconium oxide | |
| 02.863.0137 | 0.5mm ø, (500g) |
| 02.863.0138 | 1mm ø , (500g) |
| 02.863.0139 | 2 mm ø, (500g) |
| 02.863.0140 | 3 mm ø, (500g) |
| 02.863.0141 | 5 mm ø, (500g) |
| 02.863.0142 | 7mm ø , (500g) |
| 02.863.0143 | 10mm ø, (500g) |
| 02.863.0144 | 15 mm ø, (1pc) |
| 02.863.0145 | 20 mm ø, (1pc) |
| 02.863.0146 | 25 mm ø, (1pc) |
| 02.863.0147 | 30 mm ø, (1pc) |
| 02.863.0148 | 40 mm ø, (1pc) |
| Sintered alumium oxide | |
| 02.863.0149 | 1mm ø, (500g) |
| 02.863.0150 | 2 mm ø, (500g) |
| 02.863.0151 | 3 mm ø, (500g) |
| 02.863.0152 | 5 mm ø, (500g) |
| 02.863.0153 | 7mm ø, (500g) |
| 02.863.0154 | 10mm ø, (500g) |
| 02.863.0155 | 15 mm ø, (500g) |
| PTFE with steel core | |
| 02.863.0156 | 15 mm ø , (1pc) |
| 02.863.0157 | 20 mm ø , (1pc) |
| The grinding balls can be used for all ball mills. Please inquire us if special specifications are required. |
|
