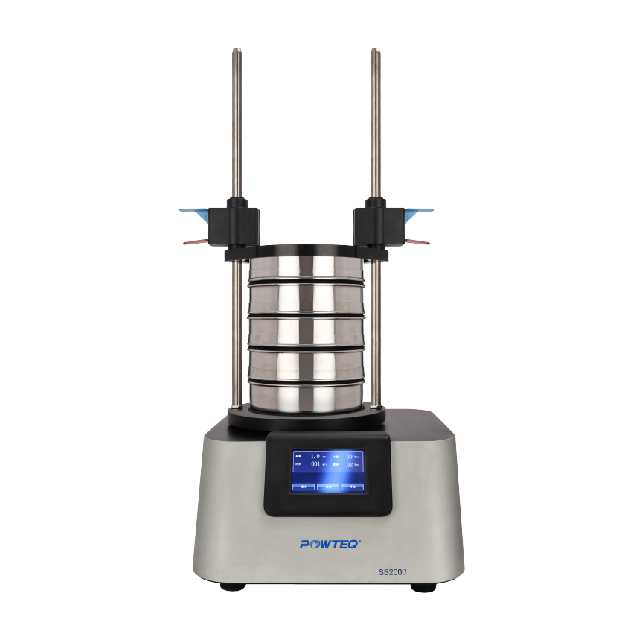

Vibratory Sieve Shaker SS2000
Measuring range:20μm-25mm
Time setting:01~99min
SS2000 is used to batch sieve the solid particle or powder samples. Its electromagnetic drive system guarantees the result is achieved not only in a very short time but also accurate and repeatable. It can perform dry sieving and wet sieving for samples and most parameters can be digital preset. It is maintenance free and operation is very quiet.
Application |
SS2000 applies for all the inorganic and organic compounds including the sand, rocks, clay, granite, feldspar, coal, soil, grains, seeds and all kinds of solid particles.
Working Principle |
The model SS2000 adopts electromagnetic drive system which generates unique three-dimensional motion to throw samples, that makes the samples distribute evenly on the whole sieve. Intermittent vibration can improve sieving effects and guarantee sieving holes are free from blocking.
Features and advantages |
○ Dry, wet sieving.
○ Low noise, maintenance-free.
○ Intermittent mode can be selected.
○ Unique sieving with 3D motion, high accuracy.
○ Reliable, repeatable and high efficient sieving result.
○ LED 5 inch touch screen, intelligent control, convenient operation.
○ Digital setting, all sieving parameters can be preset, simple operation.
○ It can be connected to the computer and controlled by the screening software to perform data processing and analysis, screening evaluation.
Technical Data |
Measuring range | 20μm-25mm |
Amplitude adjustment range | 0.2-3.0mm |
Time setting | 01~99min |
Interval operation adjustment range | 00~99s |
Drive /sieving mode | electromagnetic drive |
Max. number of fractions | 9/17 |
Sieve diameters | 100/150/200/203mm(8'') |
Parameter combinations that can be stored | 20 |
Max. feed capacity | 3kg |
Rated power | 400W |
Instrument size(W*D*H) | 400*480*240mm |
Package size(W*D*H) | 660*660*540mm |
Net weight | 43kg |
*Information on this site is provided for information purposes only and the contents hereof are subject to change without notice.
Order Information-Vibratory Sieve Shaker SS2000 | |
Item No. | Description |
24.887.0001 | Vibratory Sieve Shaker SS2000, 220V,50/60Hz |
(Please order clamping device,collect pan,sieves separately) | |
Clamping device | |
01.869.0001 | Standard clamping device (standard cover, threaded rod 2pcs,standard nuts 2pcs) |
01.869.0002 | Comfort clamping device (standard cover,smooth rod 2pcs, comfort type fasten clip 2pcs) |
01.869.0005 | Universal clamping device(incl. smooth rod 2 pcs,with water inlet cover, comfort clip 2pcs) |
01.869.0007 | Standard cover |
50.008.0011 | Smart screen software, computer control, data recording and analysis, evaluation (incl. adapter RS232-USB, cable, balance) |
Collecting pan and lid | |
01.869.0004 | Collecting pan, 200mm*50mm, stainless steel, made in Europe |

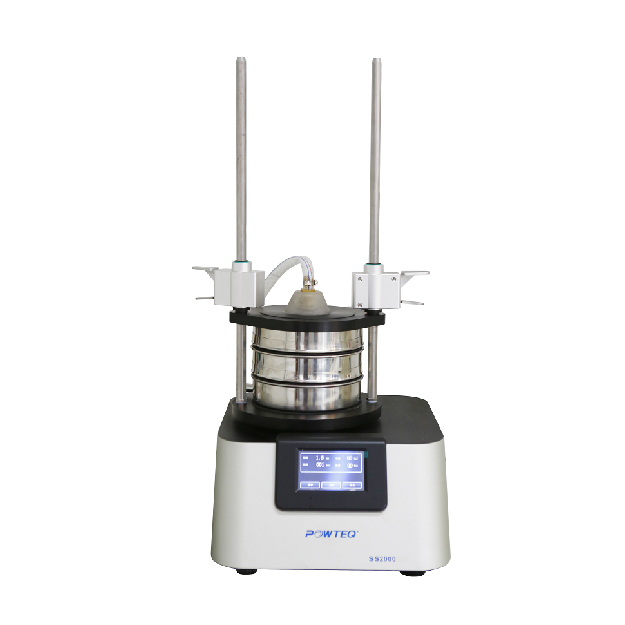

01.869.0006 | Collecting pan with outlet (including hose and flange) for wet process,200mm*50mm,stainless steel, made in Europe |
01.869.0009 | Lid of the collecting pan,200mm*50mm,( stainless steel, made in Europe |
01.869.0008 | Intermediate collecting pan, 200mm*50mm,stainless steel, made in Europe |
