Rotary Sample Divider RSD200
Feed size:< 10mm
Speed：80-120rpm
Time setting:1-999min
The RSD200 can evenly divide one sample to 6, 8, 10 uniform small samples. Each small sample has the same physical and chemical properties, and can represent the attributes of the whole batch of samples. Currently, the divider is the most accurate sample dividing device on the market.
| Application |
Engineering/electronics, building materials, agriculture, pharmaceuticals, chemical/synthetic materials, metallurgical,geological/environment/resources recycling, glass/ceramics, biological, food.
| Working principle |
Samples enter a taper-shaped rotating pipe via the feed hopper of the vibratory feeder. The rotating pipe rotates at a constant speed; samples move to the channels under the effect of centrifugal force and are collected inside the containers outside the above channels. The samples in all containers have the same physical and chemical properties.
| Features and advantages |
○ Extremely high division accuracy
○ The parameters are digital and can be preset
○ Maintenance-free
○ Easy collection and cleaning
○ Wide range of the sample bottle volume
○ 9 SOPs can be stored.
| Technical Data |
| Feed size | < 10mm |
| Speed | 80-120rpm |
| Time setting | 1-999min |
| Number of divisions | 6/8/10 |
| Volume | 10/25/50/100/250/500ml |
| Rated power | 15W |
| Power supply | 220v,50/60Hz |
| Instrument size | 465*490*620mm |
| Package size | 620*620*770mm |
| Net weight | 30kg |
| Order Information-Rotary Sample Divider RSD200 | |
| Item No. | Description |
| 24.888.0001 | RSD 200, 220 V,50/60Hz； incl. host, vibratory feederVF200-75/40 and 10 sample bottles 250ml.Please order dividing head separately. |

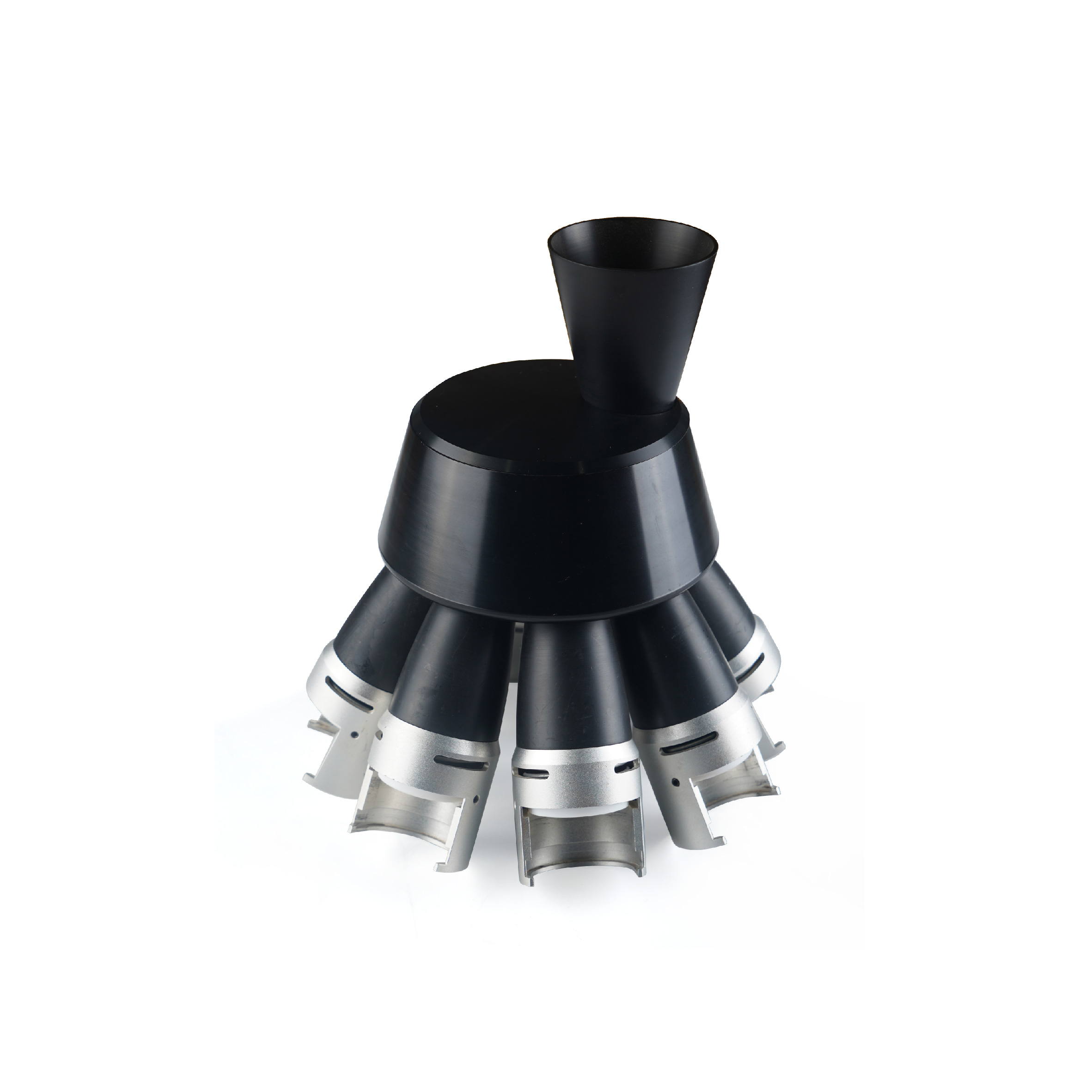

| Rotary dividing head | |
| 22.866.0005 | Rotary dividing head, incl.10pcs outlets |
| 22.866.0002 | Rotary dividing head, incl.8pcs outlets |
| 22.866.0004 | Rotary dividing head, incl.6pcs outlets |
| Accessories | |
| 70.014.0001 | Sample bottle, 250ml, glass |
| 70.014.0002 | Sample bottle, 500ml, glass |
| 01.888.0001 | 10ml sample bottles, glass (incl.adapter and 10ml sample bottle 10pcs ) |
| 01.888.0002 | 25ml sample bottles (incl.adapter and 25ml sample bottle 10pcs ) |
| 01.888.0003 | 50ml sample bottle glass (incl.adapter and 50ml sample bottle 10pcs ) |
| 70.014.0009 | Sample bottle,100ml, glass |
| 02.866.0101 | Sample bottles, 250ml, glass, 10pcs |
| 02.866.0102 | Sample bottles, 500ml, glass, 10pcs |
