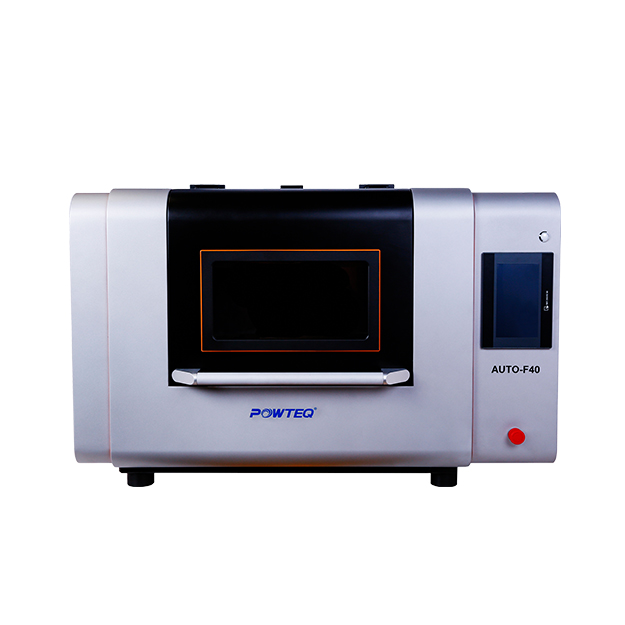

Automatic Fusion Machine Auto-F40

Operating temperature: Room temperature~1250℃

Temperature control accuracy: ±1℃

Temperature increasing rate: 35℃/min

Share



Automatic Fusion Machine Auto-F40 adopts the glass flux sheet method to prepare a fused glass sheet for samples such as cement, lime, catalyst, mining and geological materials, refractory materials,  glass,  dioxygen,  powders of silicon,  bauxite, alumina, etc. Glass sheets are mainly used for X-ray fluorescence spectroscopy (XRF) analysis.

Application

steel, cement, ceramic, glass, inspection and quarantine, scientific research, mining exploration, non-ferrous metal, and refractory industries.

Working Principle

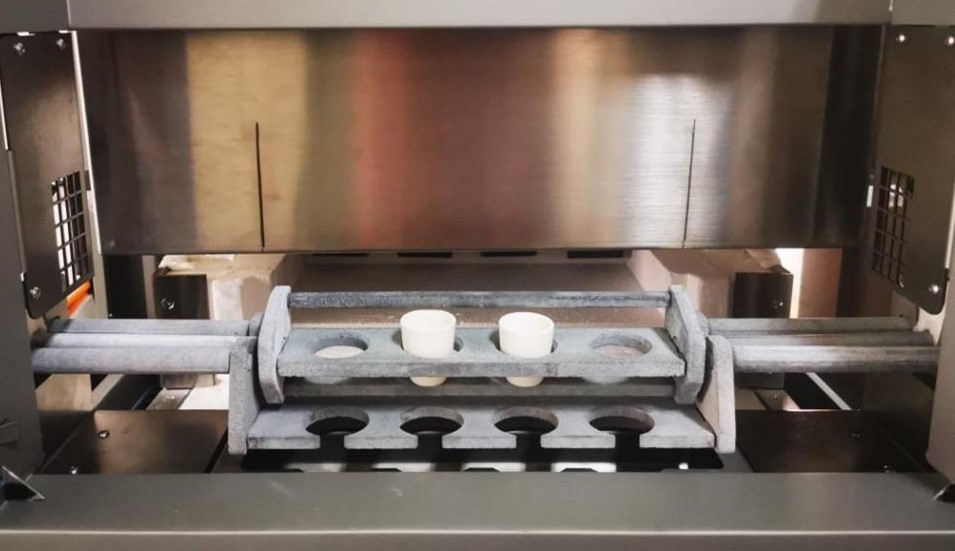

Up to four samples can be placed in different crucibles and mounted on the bracket of the electric heating chamber. when the sample is completely melted, it will be poured into a pre-heated platinum mold. The melt sample will be quickly cooled by the fan and finally solidified into a glass sheet with a uniform interior and flat surface.



Features and advantages

  • Touch screen display and control.
  • Temperature control accuracy: +/-1℃ O Crucible swing angle: Max±40。
  • Heating mode and speed: silicon carbide heating, 35℃/min.
  • All processes including Transition→ heating→ pouring→cooIing can be completed with one click after the parameter setting.
Software and communication
  • Data lnterface: 1 USB port and 1 RJ45 port.
  • Operation data/fusion recipes can be downloaded and uploaded easily.
  • Running/operation/alarm Iogs can be recorded and exported conveniently.
  • Remote troubleshooting.
  • Data report in table and curve available.

Technical Data



Number of stations

4

power supply

1pH, 220VAC,50/60Hz

Sample number

4

power

8KW

Operating temperature

Room temperature ~1250℃

Rated Current

35A

Temperature control accuracy

±1℃

Measurement(LxWxH)

1020 x 650 x 670mm

Temperature increasing rate

35℃/min

weight

136kg

* Information on this site is provided for information purposes only and the contents hereof are subject to change without notice.



Item No. Description
24.903.0001 Four-channel Fusion Machine Auto-F40 ,220V,50/60HZ
Please order platinum crucible and mold separately
  Accessories
01.903.0001 Platinum crucible
01.903.0002 Platinum mold
02.903.0001  mold bracket, high-temperature ceramics
02.903.0002  crucible bracket,high-temperature ceramics
02.903.0003  silicon rod
02.903.0004  thermoelement
02.903.0005  furnace bottom plate (Corundum material)
